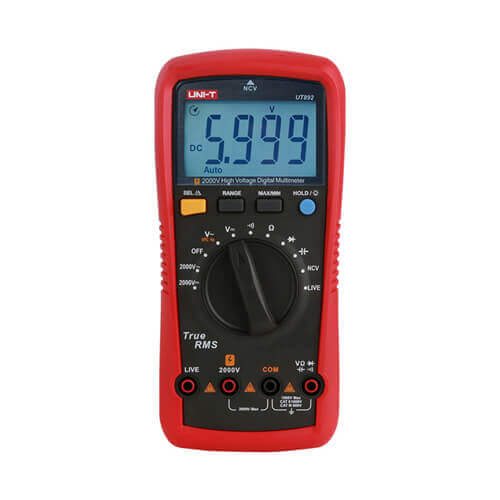

UT892 Digital High Voltage Multimeter provides AC/DC voltage measurement up to 2000V with full range overload protection. The specially designed 2000V input terminal and the indication for test leads allow users to take electrical measurements safely and efficiently.

This meter features VFC mode for accurate measurements on variable frequency motor drives and noisy devices. The built-in NCV helps users detect the presence of live voltage without contacting any metal conductor, and the LIVE test can identify the live wire with a single test lead. UT892 has a removable rubber holster that can hold test probes for one-handed operation.

Features of UT892 2000V AC/DC Digital High Voltage Multimeter

• 6000 counts True RMS
• 2000V AC/DC voltage measurement
• VFC 600V voltage measurement
• LIVE test
• 60MΩ resistance/60mF capacitance
• 10kHz frequency measurement
• Test lead indication
• Backlight
• NCV
• CAT II 1000V/CAT III 600V

Specifications of UT892 2000V AC/DC Digital High Voltage Multimeter:

Specifications	Range	UT892
DC voltage (V)	6.000V/60.00V/600.0V/1000V/2000V	±(0.5%+3)
AC voltage (V)	6.000V/60.00V/600.0V/1000V/2000V	±(1.0%+3)
Variable frequency voltage (VFC)	600V	±(5%)
Frequency (Hz)	10Hz~10kHz	±(0.5%+2)
Resistance (Ω)	600.0Ω/6.000kΩ/60.00kΩ/6.000MΩ/60.00MΩ	±(0.5%+5)
Capacitance (F)	60.00nF/600.0nF~600.0μF/6000μF/60mF	±(3.0%+10)
Features
Display counts		6000
Auto/manual range		√
NCV		√
LIVE test		√
Diode		√
Continuity		√
Low battery indication	≤ Approximately 2.5V	√
Data hold		√
Max/Min		√
Relative mode		√
Auto power off	Approximately 15  minutes	√
Backlight		√
Safety rating	CAT II 1000V/CAT III 600V	√
General Characteristics
Power	AA 1.5V x2
Product Color	Red+Gray
Product net weight	350g (Including batteries)
Product size	187*88*56mm
Standard accessories	English manual, test leads, batteries.
Standard individual packing	Gift box
