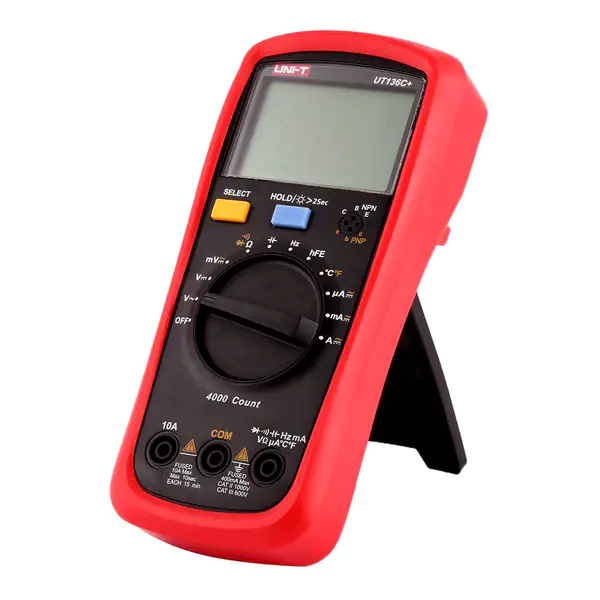

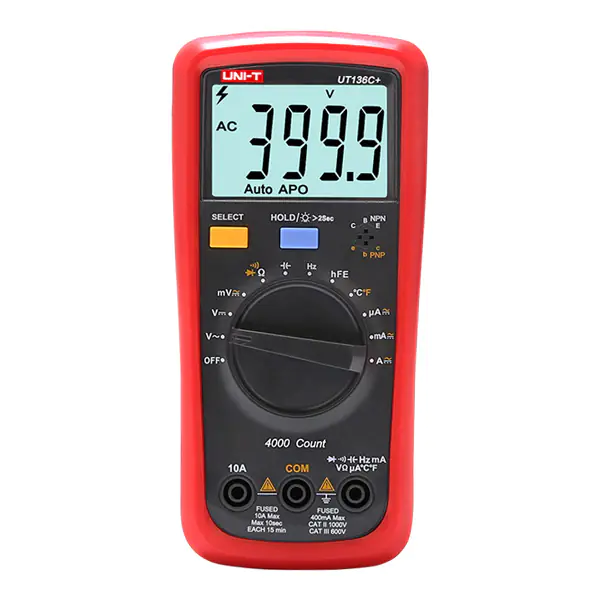

The new generation of UT136C+ digital multimeter has an innovative industrial design that ensures that the product can withstand a drop of 2 meters in height. Large LCD screen provides a clear display, and its 4 times/second sampling rate provides users with more accurate readings. UT136C+ meter is designed to work safely in a CAT II 1000V/CAT III 600V environment.

Features and Specifications of Digital Multimeter UT136C+

• Measures up to 1000 V DC/AC voltage.
• Measures up to 10 A DC/AC.
• Quick capacitance measuring (1 mF in 4 seconds).
• Backlight.
• Continuity buzzer.
• Data hold function.
• Test probe holder.
• 2 mtr. drop-proof.
• Testing & measurement functions: AC/DC voltage; AC/DC; resistance; capacitance; frequency; temperature; transistor testing; diode testing; hFE (transistor measurement).
• Large LCD dual display; up to 4 x/s sampling rate.
• Low power consumption and auto power saving function.
• Long battery service life (>500 hrs).
• Low battery indication.
• Auto power off.
• Safety standards: CAT II 1000V, CAT III 600V
• Model: UT136C+
• Brand: UNI-T, China
