UT500 series Digital Megger Meter or insulation testers are used to measure the insulation resistance of electrical equipment and household appliances. This is done by measuring the insulation resistance between electrical circuits or between circuits and the ground. UT500 series can measure insulation resistance, AC Voltage, low resistance, PI (Polarization Index), and DAR (Dielectric Absorption). These are ideal tools for ensuring transformers, generators, high-voltage motors, capacitors, cables, arresters, and other electrical equipment can operate safely and accurately. Models in UT500 series: UT501A, UT501B, UT502A

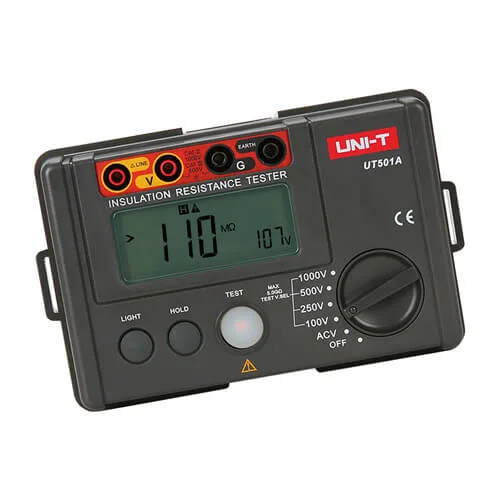

Uni-T Brand Digital Megger Meter Insulation Tester, Model: UT501A

• Certifications: CE, UKCA
• 2000-count LCD, overload indication, backlight
• AC voltage measurement, auto power off
• Auto discharge
• Continuous low resistance measurement
• Continuous measurements mode, red warning light, and buzzer function
• PI and DAR measurement, auto resistivity calculation
• Low resistance returning to zero function to improve accuracy

Specifications of UT501A Insulation Resistance Testers

Specifications	Range		UT501A	UT501B	UT502A
Insulation resistance (Ω)	Test voltages	100V/250V/500V/1000V	0%~10%
		250V/500V/1000V		0%~10%
		500V/1000V/2500V			0%~10%
	100V	0MΩ~100MΩ	±(3%+5)
	250V	0MΩ~99.9MΩ	±(3%+5)	±(3%+5)
		100MΩ~5GΩ	±(5%+5)	±(5%+5)
	500V	0MΩ~99.9MΩ	±(3%+5)	±(3%+5)	±(3%+5)
		100MΩ~5GΩ	±(5%+5)	±(5%+5)	±(5%+5)
	1000V	0MΩ~99.9MΩ	±(3%+5)	±(3%+5)	±(3%+5)
		100MΩ~5GΩ	±(5%+5)	±(5%+5)	±(5%+5)
	2500V	0MΩ~99.9MΩ			±(3%+5)
		100MΩ~9.9GΩ			±(5%+5)
		10GΩ~20GΩ			±(10%+5)
	Load current	50V (R=50kΩ) 1mA	0%~10%	0%~10%	0%~10%
		100V (R=100kΩ) 1mA	0%~10%	0%~10%	0%~10%
		250V (R=250kΩ) 1mA	0%~10%	0%~10%	0%~10%
		500V (R=500kΩ) 1mA	0%~10%	0%~10%	0%~10%
		1000V (R=1MΩ) 1mA	0%~10%	0%~10%	0%~10%
		2500V (R=1MΩ) 1mA			0%~10%
Short-circuit current			<2mA	<2mA	<2mA
Low resistance (Ω)	0.01Ω~200Ω (about 5.0V/>200mA）			±(2%+3)	±(2%+3)
AC voltage (V)	30V~750V		±(2%+3)
	30V~600V			±(2%+3)	±(2%+3)
