Smart Sensor Combustible Gas Detector AS8800L is a device that detects the presence of gases in an area, often as part of a safety system. This type of equipment is used to detect a gas leak and interface with a control system so a process can be automatically shut down. A gas detector can sound an alarm to operators in the area where the leak is occurring, allowing them to leave. This type of device is important because many gases can be harmful to organic life.

Gas detectors can be used to detect combustible, flammable, and toxic gases, oxygen depletion, etc. This type of device is widely used in industry and can be found in locations, such as on oil rigs, to monitor manufacturing processes and emerging technologies such as photovoltaic. They may also be used in firefighting.

Combustible gas is a gas that can burn in the air or Oxygen. Examples of combustible gases are Hydrogen, Methane, Propane, and Isobutane. The mixture of a certain amount of combustible gas and Oxygen will explode in the presence of an ignition source.

SPECIFICATIONS

Gas Type	Combustible Gas
Measuring Principle	Semiconductor
Sensitivity	Variable, minimum 5ppm (gasoline)
Response Time	Instantaneous
Warm-up time	<20 sec
Continuous Operation Time	9 hours (slightly varies with working conditions)
Sensitivity Adjustment	√
Overcharge / Overcurrent Protection	√
Power Indication	√
Battery Indication	√
Leak Size Indication	Indication Light & Alarm Buzzer
Operation Condition	0°C~ 50°C ; ≤80%RH (Non Gel)

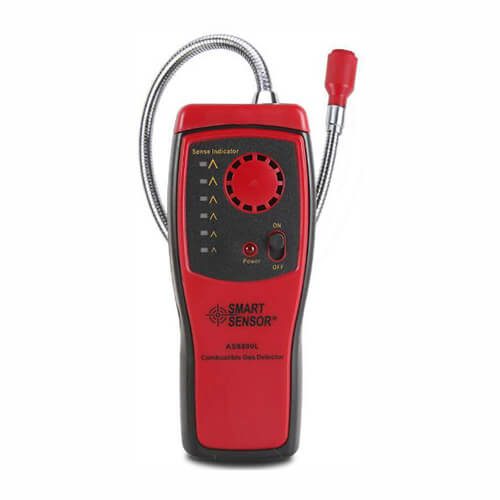

Picture: Smart Sensor Combustible Gas Detector AS8800L Diagram

• AS8800L Gas Analyzer Combustible Gas Detector Port Flammable Natural Gas Leak Location Determine Meter, Tester with Sound and Light Alarm.
• A portable detector for detecting all combustible gases.
• Long, flexible stainless steel probe reaches all areas.
• Audible semiconductor probe and auto fast warm-up.
• Instant response, pinpoint leak position, and low battery indication.
• Audio & visible leakage alarm indication and adjustable sensitivity.
• Compact size, lightweight, and easy to carry and operate.

Smart Sensor Combustible Gas Detector AS8800L Back Side
