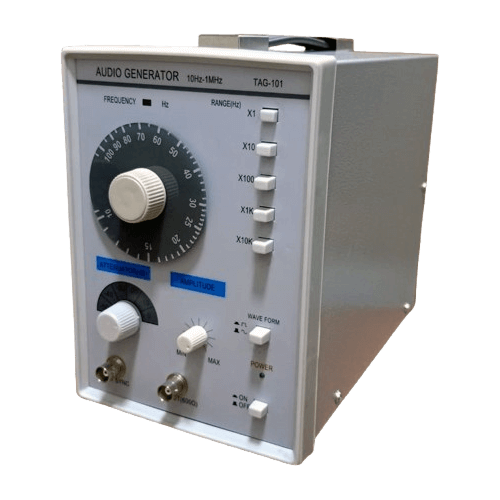

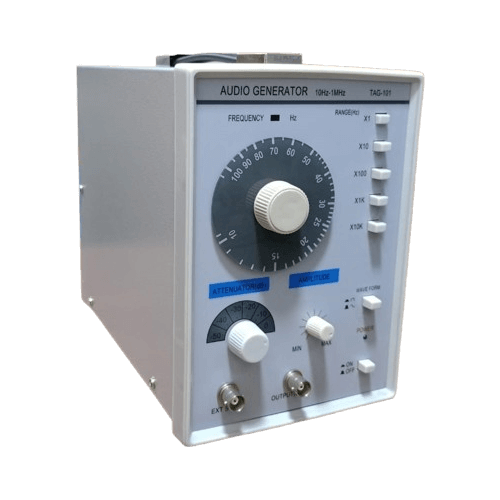

This is the Signal Generator TAG101 Audio Generator which 10Hz-1MHz Low-Frequency Signal for Maintenance 220V. It is a physics lab apparatus, needed for physics experiments.

• 100% brand new and high-quality
• A reliable circuit system ensures high stability and accuracy
• This device is easy to use due to vertical panel integration
• The frequency range 10hz-1mhz is optional on the signal generator panel
• This generator has characteristics of a sine wave and an effective frequency response
• It’s the instant for electronic engineering, laboratories, production lines, teaching, and scientific research. It can also be used as a supporting module for industrial equipment.

Specification of Signal Generator TAG101:

• Condition: 100% Brand New
• Item Type: Audio Generator
• Frequency Range: 10Hz to 1MHz, 5 Measuring Ranges
• Accuracy: ±5% of full scale
• Output Impedance: 600Ω
• Output Control: 0dB, -10dB, -20dB, -30dB, -40dB, -50dB fine adjustment.
• Sine Wave Output:
• Output Voltage: 5-6V RMS
• Distortion:
• 500Hz-50kHz, no more than 0.05%
• 50Hz-500kHz, no more than 0.5%
• Output Smoothness: Take 1 for reference, ±1.5dB
• Square Wave Output: Range: 10Hz-1MHz
• Output Level: 10V Peak Value
• Rise: 0.5μs
• Synchronization Performance: Range: 1V voltage per output can change the oscillation frequency by 1%
• Input Impedance: 10KΩ
• Power Supply: 220V (50/60Hz), 8W
• Plug: EU Plug
• Made in China
• This is not a Function Generator
•
