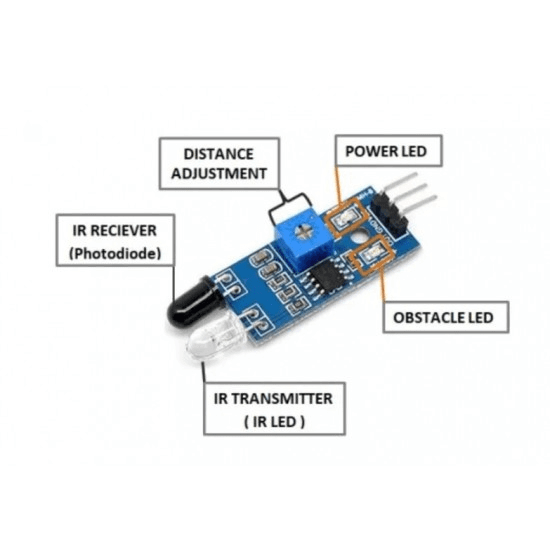

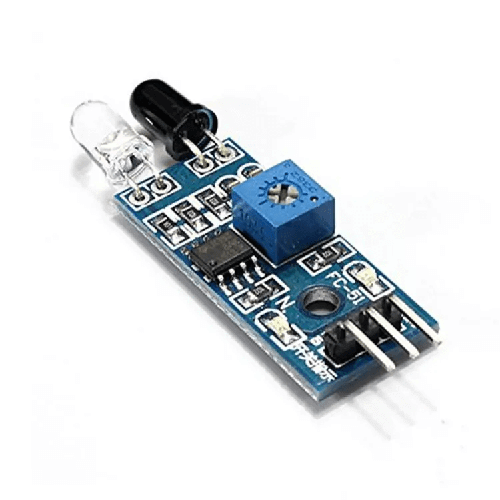

An infrared obstacle avoidance IR sensor module has two infrared sensors that can detect obstacles in front of them. It typically has three pins: VCC (power supply), GND (ground), and OUT (output). The VCC pin provides power to the module, usually 5V. The module has a built-in IR transmitter and receiver that emits IR energy and looks for reflected IR energy to detect obstacles. The output pin gives out a digital signal when it detects an obstacle or reflection. This signal is low-level. The module also has an onboard potentiometer that lets users adjust the detection range. The effective distance range is 2cm to 30cm.

Technical Specifications:

PARAMETER	DETAILS
Model	IR Sensor Module
Operating Voltage	3.3V – 5V
Detection Range	Adjustable, up to 30cm
Wavelength	950nm
Output Signal	Digital (0 or 1)
Indicator LED	Included for visual feedback
Dimensions	Compact and space-efficient
Compatibility	Suitable for various robotic applications

Explore the Datasheet:

Uncover the technical intricacies of the Infrared Obstacle Avoidance IR Sensor Module by downloading our detailed datasheet. Gain insights into its specifications and unleash its potential for your projects.

• Datasheet
• User Manual

Here’s how it works:

1. An infrared obstacle sensor module has a built-in IR transmitter and IR receiver.
2. The IR transmitter emits the IR signal.
3. The IR receiver looks for the reflected IR signal to determine if the object is present or not.
4. The presence of an obstacle is reflected in the OUT pin:
   • If the obstacle is present in front of the sensor, the sensor’s OUT pin is LOW.
   • If the obstacle is NOT present in front of the sensor, the sensor’s OUT pin is HIGH.
