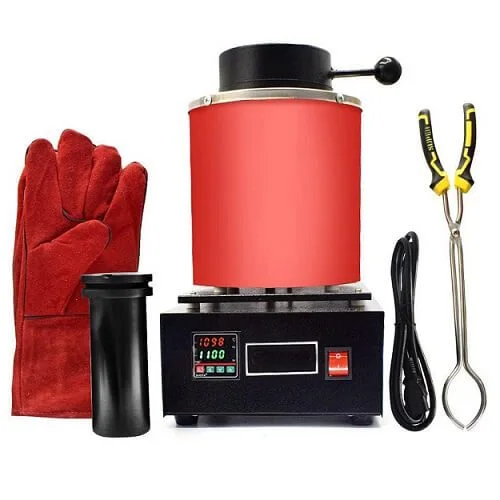

Electric Melting Furnace 1400W 1100℃ Furnace 1Kg, 2Kg, 3Kg Digital Automatic Melting Furnaces Machine with Graphite Crucible for Gold, Silver, Copper, and Aluminum Smelter. The Electric Melting Furnace, with its compact design, is ideal for professional use. By using high-quality materials, the smelting furnace can meet the requirements of the industry, and the workshop is suitable for the processing of precious metals such as gold, silver, pure copper, aluminum, Tin, Zinc, and other metals with low acid-base properties & not too high melting points. The maximum adjustable temperature of our product is 1100° C(2012 ℉). Thus, the melting furnace is perfectly designed for the melting of precious metals. The melting point of silver is 962° C, and gold is 1064 ° C. The regulation of the melting temperature is very user-friendly via a highly modern PID module. This module allows the digital adjustment of the setpoint temperature to the degree. The PID module monitors the actual temperature in the melting chamber at 2-second intervals so that it does not overheat or cool down. The temperature is kept constant around the melting point. Electric Melting Furnace 1400W 1100℃ Furnace

Features

• Max Temp up to 1100 ° C/2012 ℉: The max heating temperature is up to 1100° C(2012 ℉). The melting furnace can melt metals with melting points below 1100 ° C, such as gold, sterling silver, pure copper and aluminum, Tin, Zinc, Brass Bronze, etc.
• Professional Durable Materials: The product uses a quartz furnace. The furnace wire seal integrated machine can be heated quickly. The inner tank is made of quartz and has the characteristics of heat resistance, acid and alkali resistance, and aging resistance.
• PID Temperature Control Table: Equipped with an advanced PID module and digital control system to provide accurate and convenient metal melting, monitoring the actual temperature in the melting chamber at 2-second intervals, so that it will not overheat or cool.

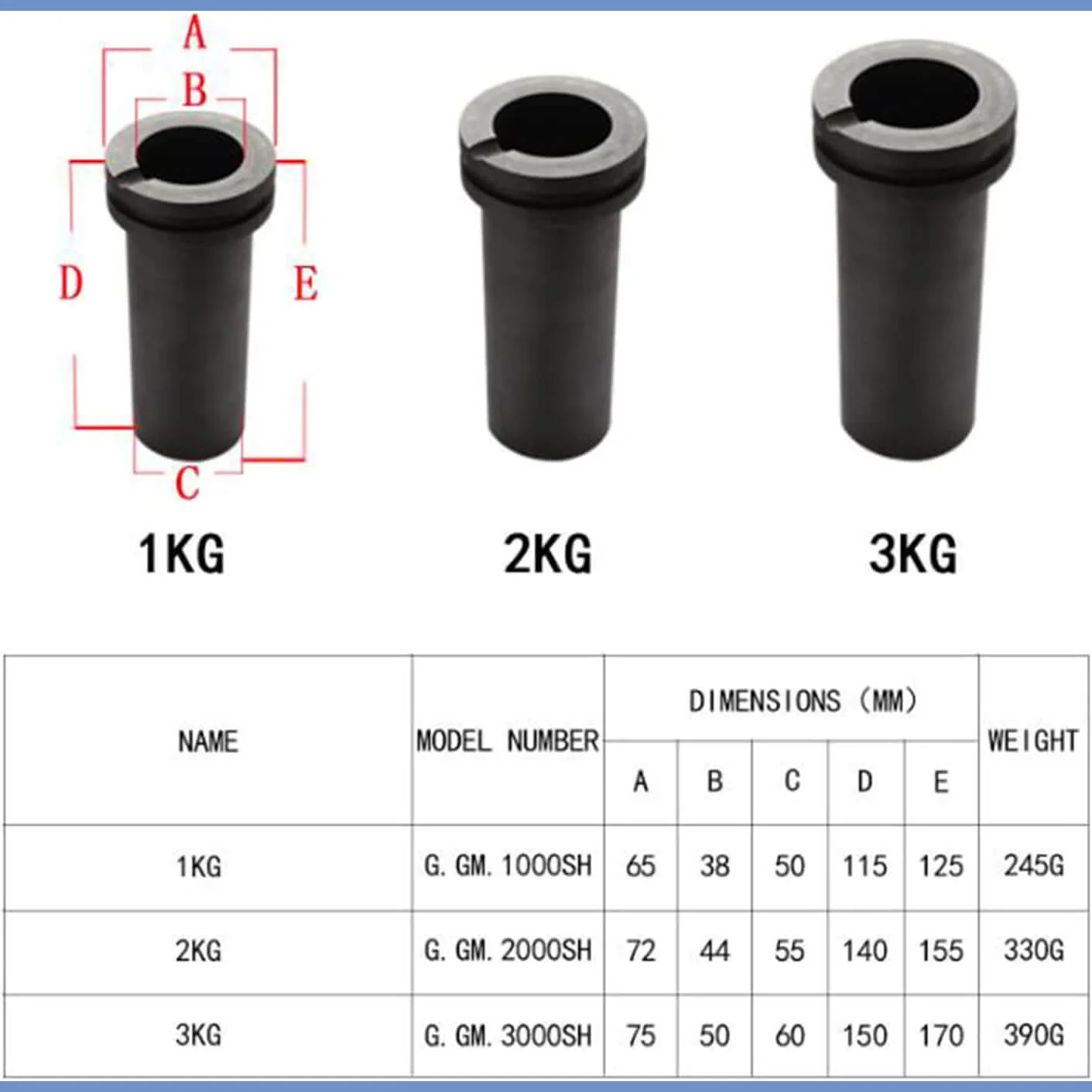

• High Purity Graphite Crucible: The high density of natural graphite makes the crucible have good thermal conductivity, temperature resistance, corrosion resistance, and long service life. Especially, the groove design facilitates the pouring and filling of the melt.
• Designed Crucible Tongs: A grooved graphite crucible is designed for easy removal from the furnace using specially designed crucible tongs. Double-handle Tongs are made of high-quality materials, which are rust-proof, corrosion-resistant, and durable.

Specification of the Electric Melting Furnace:

• 1KG, 2KG, 3KG Capacity is optional
• Smelt Quickly
• PID Digital Temperature Control
• Durable Materials
• Designed Crucible Tongs
• Voltage:220V
• Power:1400W
• Crucible capacity:1KG/2KG/3KG
• Maximum temperature:1100℃(2012℉)
• Weight:12KG
• Package dimensions:22 * 22 * 40cm
• Made in China

Applications of Electric Melting Furnace 1400W 1100℃ Furnace. Click to Know More.
