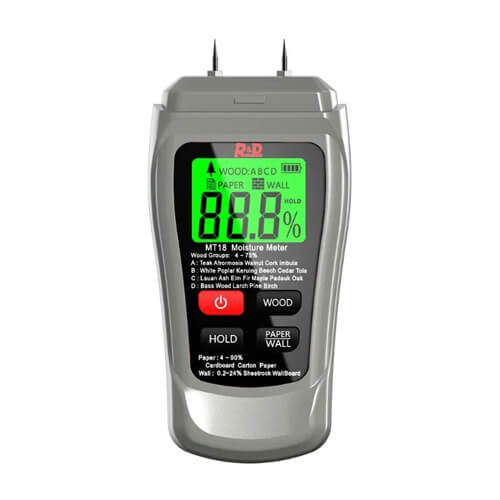

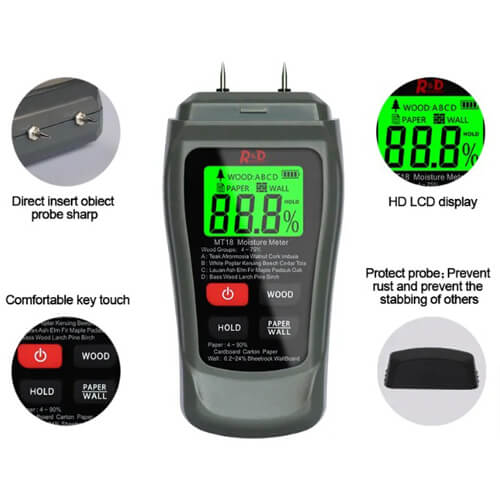

Digital Moisture Meter MT-18, Wood Moisture Meter, Paper Humidity Tester, Wall Hygrometer. The instrument is for ABCD wood scales, enabling the user to take accurate moisture measurements in all kinds of wood species. You can choose the paper mode to Test the moisture of the Cardboard, carton, and paper. You can select WALL mode to test the moisture of sheetrock, wallboard, or other building materials.

Measurement Instructions:

• Remove the cap to expose the needle electrodes.
• Power ON the Instrument.
• Select the appropriate wood calibration scale A, B, C, or D (See the Wood Calibration Tables later in this guide) Using the “WOOD” button.
• Or Press the “PAPER/WALL” key to Choose Paper Mode or Wall Mode. Paper mode is used for testing Cardboard/Cartons. Wall mode is used for testing Sheetrock/wallboard/Floor.
• Push the needle pins into the material and observe the reading.
• Power OFF the instrument.

Auto Power OFF:

This instrument will be Auto powered off if there is no button pressing in 5 minutes. This design is for saving battery power consumption.

Specifications of Digital Moisture Meter MT-18:

• LCD Display With Backlight
• Principle: Electrical resistance
• Wood Range: 4~75%
• Paper Range: 4~90%
• Wall Range: 0.2~24%
• Resolution: 0.1%
• Accuracy: ±0.5%
• Electrode length: 10mm(0.4″)
• Electrode pins: Integrated
• Auto Power OFF: After approx.5 minutes
• Power Supply: 2*AAA batteries
• Meter housing: ABS plastic
• Operating Temperature: 0 to 40 (32 to 104)
• Dimensions: 145 X 67 X 32mm (5.7″ x 2.6″ x 1.3″)
• Weight: 200g (7.0 oz)

Wood Species Group Table:

A: Teak, Walnut, Afrormosia, Rubber Tree, Imbuia, Kokrodua, Niove Bidinkala, Cork B: Keruing, White Poplar, Beech, Cedar, Tola C: Lauan, Ash, Elm, Fir, Maple, Padauk, Oak, Cherry D: Basswood, Larch, Pine, Birch

PAPER MODE:

Cardboard, Carton, Paper

WALL MODE:

Sheetrock, Wall Board, Floor.
