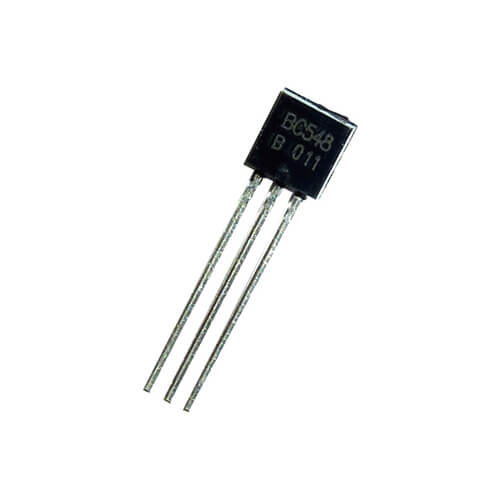

BC548 NPN Transistor

Transistor BC548
Transistor Type: NPN
Package/Case: DIP-3
Made in China

3৳

SKU 91974 Category Electronic Components Tags Electronics Lab Equipment in Bangladesh, Transistors

BC548 NPN Transistor is a general-purpose NPN bipolar junction transistor commonly used in European and American electronic equipment. It is notably often the first type of bipolar transistor hobbyists encounter and is often featured in designs in hobby electronics magazines where a general-purpose transistor is required.

BC548 Transistor Features:

Bi-Polar NPN Transistor
DC Current Gain (hFE) is 800 maximum
Continuous Collector current (IC) is 500mA
Emitter Base Voltage (VBE) is 5V
Base Current(IB) is 5mA maximum
Available in To-92 Package
Made in China

Brief Description of BC548 NPN Transistor:

BC548 is an NPN transistor so the collector and emitter will be left open (Reverse biased) when the base pin is held at ground and will be closed (Forward biased) when a signal is provided to the base pin. BC548 has a gain value of 110 to 800, this value determines the amplification capacity of the transistor. The maximum amount of current that could flow through the Collector pin is 500mA, hence we cannot connect loads that consume more than 500mA using this transistor. To bias a transistor we have to supply current to the base pin, this current (IB) should be limited to 5mA. When this transistor is fully biased, it can allow a maximum of 500mA to flow across the collector and emitter. This stage is called Saturation Region and the typical voltage allowed across the Collector-Emitter (VCE) or Base-Emitter (VBE) could be 200 and 900 mV respectively. When the base current is removed the transistor becomes fully off, this stage is called the Cut-off Region and the Base Emitter voltage could be around 660 mV.
