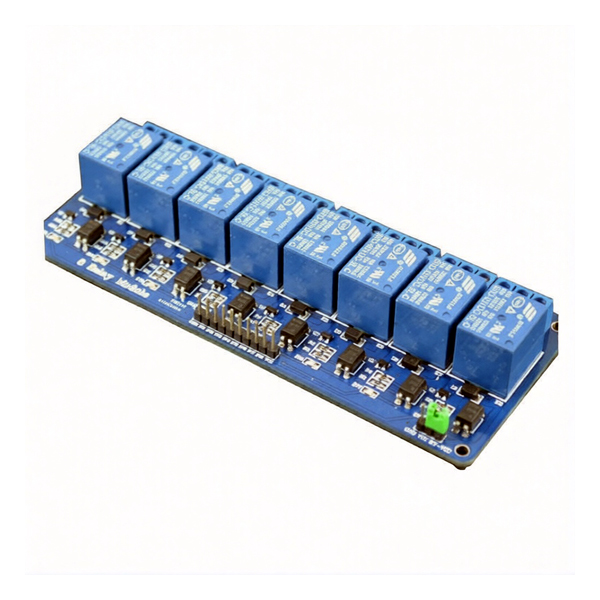

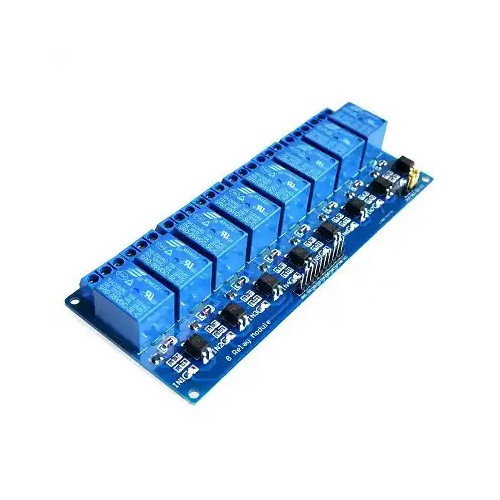

The 8 Channel 5V Relay Module is a reliable and high-performance switching board designed for controlling high-voltage or high-current devices using low-voltage microcontrollers such as Arduino, Raspberry Pi, ESP32, and other development boards. Each relay channel operates at 5V and includes both Normally Open (NO) and Normally Closed (NC) contacts for flexible switching applications.

---

🔧 Key Features

• ✅ 8 Independent Relay Channels

• ✅ Relay Operating Voltage: 5V DC

• ✅ Each channel includes:

  • 1 × Normally Open (NO) contact

  • 1 × Normally Closed (NC) contact

• ✅ Transistor (Triode) Driven Circuit for stable relay operation

• ✅ High Impedance Control Pins

• ✅ Built-in Pull-Down Circuit to prevent false triggering

• ✅ LED Indicators for Power & Relay Status

• ✅ Screw Terminals for secure wiring connections

📊 Technical Specifications

⚙ How It Works

Each relay allows you to control AC or DC loads safely from a microcontroller:

• When the relay is energized, the indicator LED lights up.

• When the relay is off, the indicator turns off.

• The pull-down circuit prevents unwanted triggering during startup.

• The transistor drive ensures stable switching and protects the controller.

🔌 Applications

• Home automation systems

• Industrial automation

• Smart irrigation systems

• Security systems

• IoT projects

• Remote appliance control

• Motor, light, and pump switching

🛠 Why Choose This 8 Channel Relay Module?

• Reliable and stable switching performance

• Easy integration with Arduino & Raspberry Pi

• Clear LED indication for troubleshooting

• Compact design with durable PCB build

📦 Package Includes

• 1 × 8 Channel 5V Relay Module
