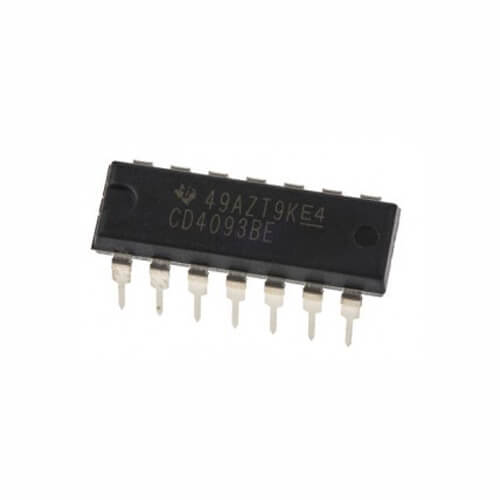

4093 NAND Gate IC

4093 NAND Gate IC
Supply Voltage Range:-0.5V to +20V
Input Voltage Range, All Inputs:-0.5V to VDD+0.5V
DC Input Current, Any One Input:±10mA
Made in China

52৳

SKU 61177 Category Electronic Components Tags Electronics Lab Equipment in Bangladesh, General ICs, IC, Integrated Circuits

The 4093 NAND Gate consists of four Schmitt-trigger circuits. Each circuit functions as a 2-input NAND gate with Schmitt-trigger action on both inputs. The gate switches at different points for positive and negative signals. The difference between the positive (VT +) and the negative voltage (VT-) is defined as hysteresis voltage (VH). All outputs have equal source and sink currents and conform to standard B-series output drive (see Static Electrical Characteristics).

Features of 4093 NAND Gate IC:

Wide supply voltage range: 3.0V to 15V
Schmitt trigger on each input with no external components
Noise immunity greater than 50%
Equal source and sink currents
No limit on input rise and fall time
Standard B-series output drive
Hysteresis voltage (any input) TA = 25°C Applications
Wave and pulse shapers
High-noise-environment systems
Monostable multivibrators
Astable multivibrators
NAND logic

Specifications of 4093 NAND Gate IC:

Supply Voltage Range:-0.5V to +20V
Input Voltage Range, All Inputs:-0.5V to VDD+0.5V
DC Input Current, Any One Input:±10mA
Power Dissipation Per package:500mW(For TA=-55°C to +100°C)
Made in China
